MDE019BO

MDE019CR SITO

MDE019BO

MDE019NO

MDE019NKNSP

MDE019HGSP

MDE019ST

modular box

MDE 019

for art. MDBOX019

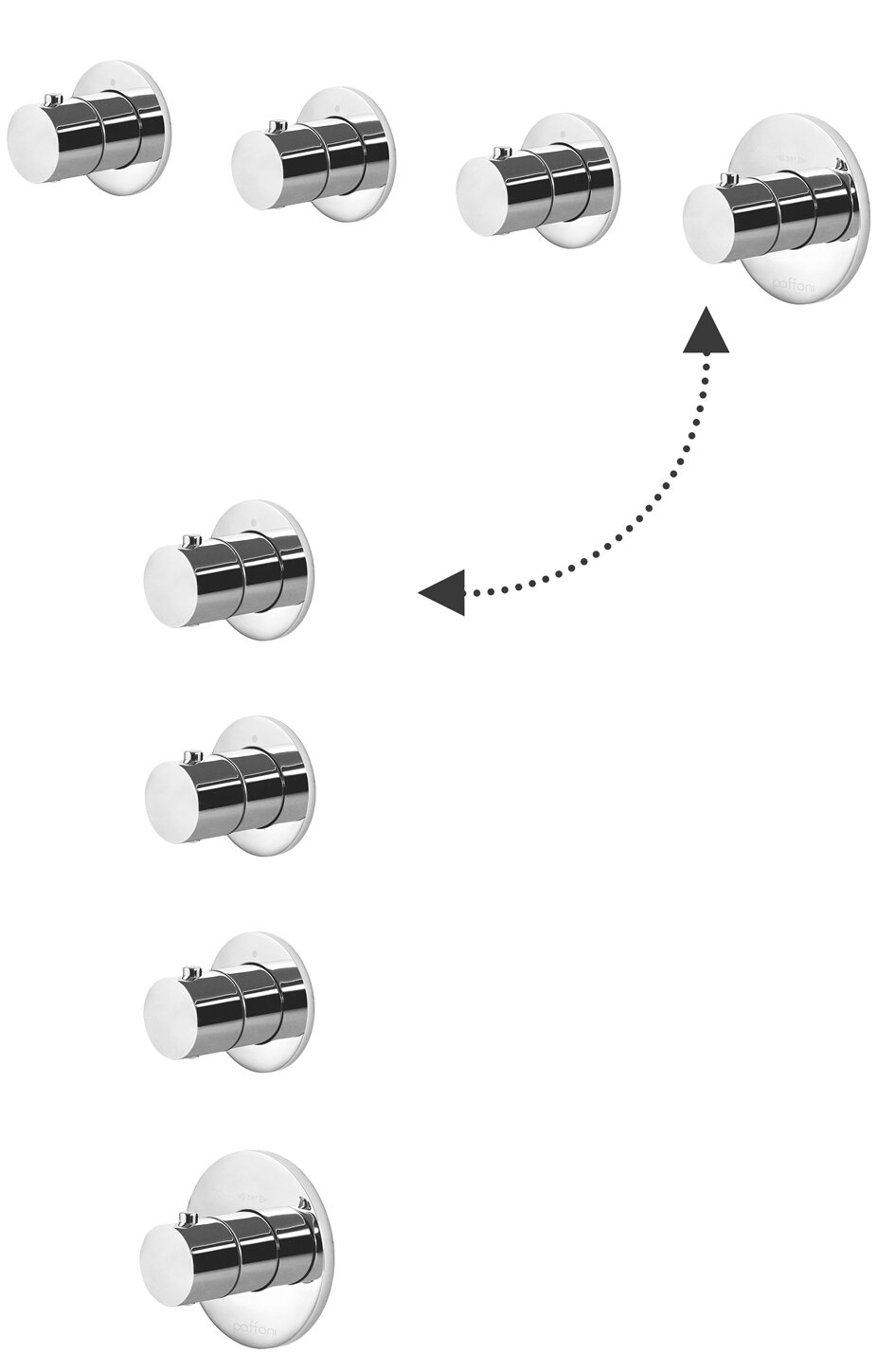

horizontal or vertical installation

Finishes

CR cromo

CR

BO bianco opaco

BO

NO nero opaco

NO

NKNSP nichel nero spazzolato

NKNSP

HGSP honey gold spazzolato

HGSP

ST steel looking

ST

External set for concealed thermostatic shower/bath mixer (3 functions) complete with:

wall plates
handles

* Horizontal installation with thermostatic group only on the right

Documentation

Technical Draw

Spare parts exploded

3D STP

Assembly Instruction

Technical Sheet
